Automatic Self Clip Lock Joint Hidden Metal Roofing Roll Forming Machine

Automatic Self Clip Lock Joint Hidden Metal Roofing Roll Forming Machine

The small portable standing seam roof roll forming machine is a versatile and compact device designed to produce standing seam metal roofs of various widths at the same height. Its size can be adjusted to accommodate different roofing needs, making it a flexible solution for different projects. This machine is easy to transport as it can be placed in a container and taken to the job site for on-site production. Its portability and efficiency make it a convenient and practical choice for roofing projects.

Forming station: 17 steps

Main motor: 11KW

Hydraulic Motor: 4KW

Material thickness:0.3-0.6mm

Shaft diameter: 75mm

Roller Material: Cr12

Material width: 610mm

Working speed: 15-25m/min

INQUIRY NOW

PRODUCT CATEGORY

New Products

DESCRIPTION

Automatic Self Clip Lock Joint Hidden Metal Roofing Roll Forming Machine

Technical Parameter

Parameters	Specification
Voltage	380V/50HZ/3PH
Driving Motor	11KW
Hydraulic Press/Cutting Motor	4KW
Forming Steps	17
Working Speed	15-25m/min
Material Width	610mm
Thickness for Steel	0.3-0.6mm
Shaft Diameter	75mm
Shaft Material	High grade 45# forged steel
Roller Material	45# steel with polished and heat treatment
PLC Cabinet	Schneider, Mitsubishi or Delta
Encoder	Omron
Sprocket Wheel	45 steel high-frequencies quench
Cutting Blade Material	Cr12 steel
Machine Frame Material	Fine welded structural steel;
Roofing Material	PPGI, GI steel G245-345, aluminum sheet
Painted Color	Blue+Gray White Or Customization
Overall Size	42008201100mm
Weight	3000KGS

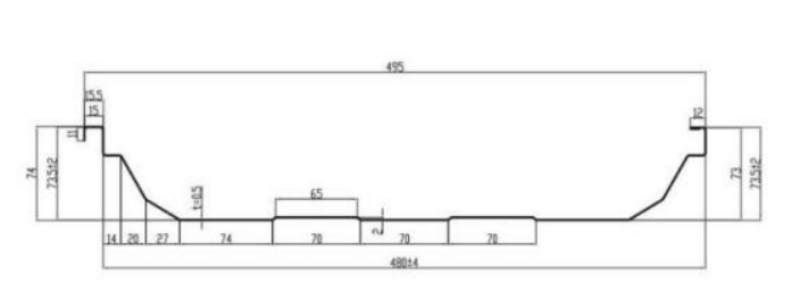

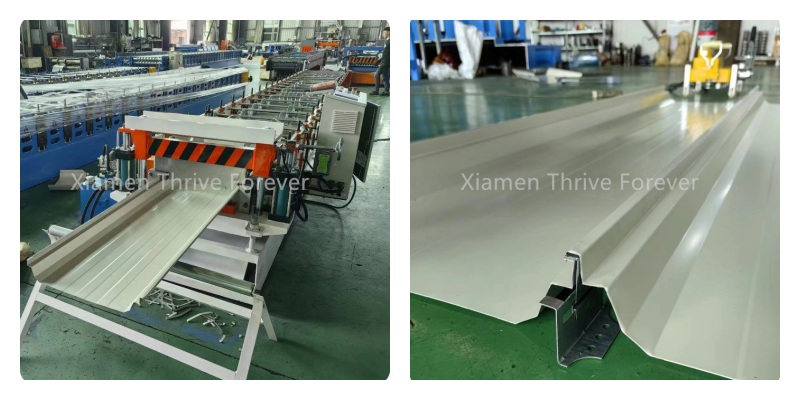

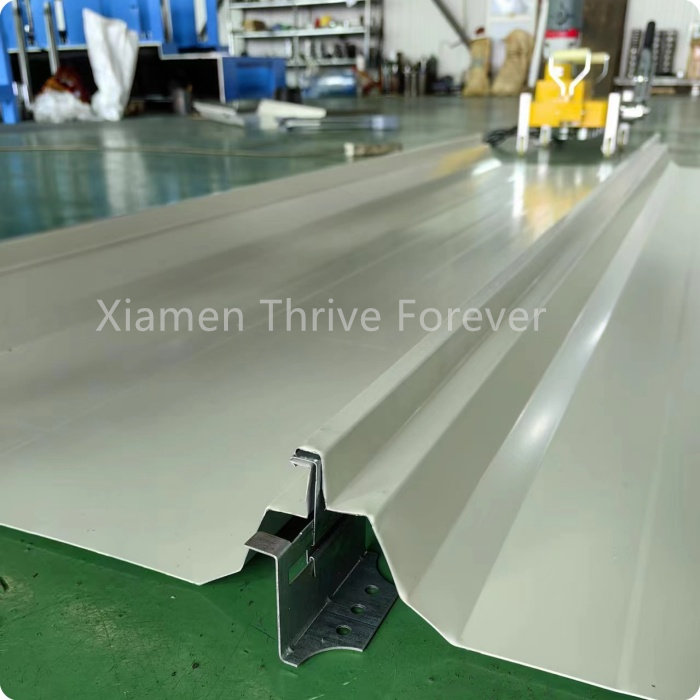

Self Clip Lock Roof Design & Sample Pictures

Main Advantages Of Clip Lock Roof Machine

Here is the Automatic Self Clip Lock Joint Hidden Metal Roofing Roll Forming Machine from China! It is the popular design in India market, there are several advantages of this machine:

Firstly, its compact size ensures it won't occupy much space, helping you save on factory costs.

Secondly, the entire Joint Hidden Metal Roofing Roll Forming Machine production line is controlled by a user-friendly PLC system. With the touch screen interface, you can effortlessly set cutting lengths and production quantities, allowing for automated and efficient operation.

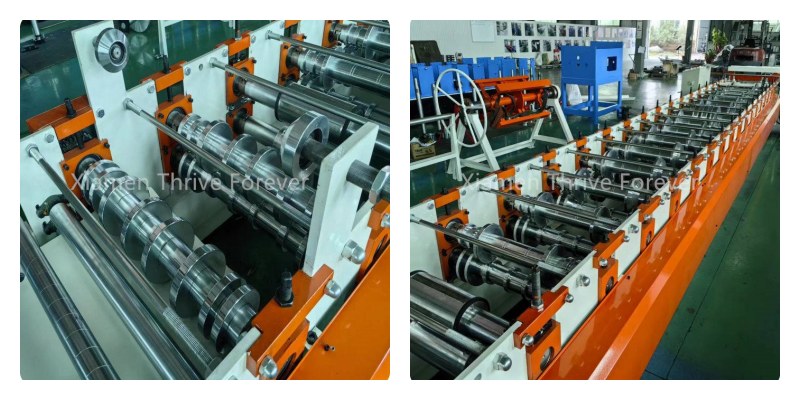

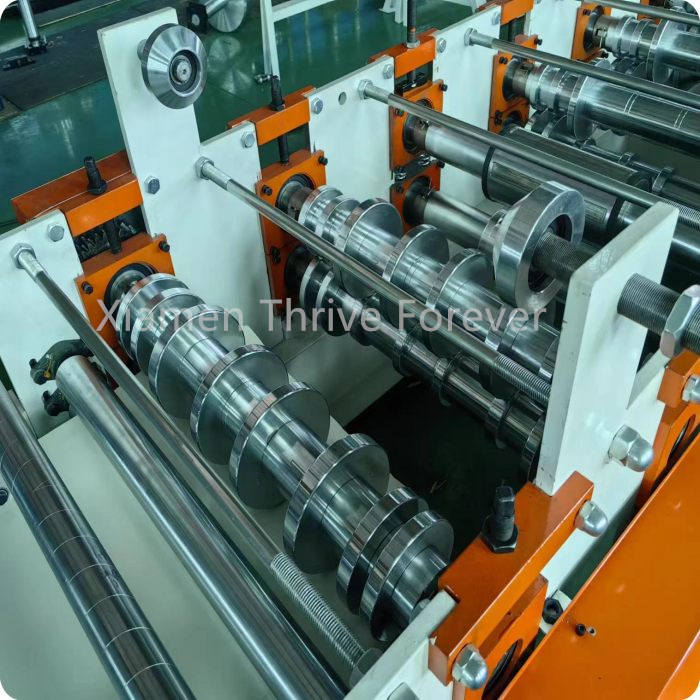

Thirdly, our standing seam roll former boasts precision-machined and hard Chrome coated forming rollers. This guarantees resistance to rust and extends the working life of the machine, ensuring durability and reliability.

Chinese wholesale standing seam roofing machine
Experience the future of self Clip Lock Joint Hidden Metal Roofing Roll Forming Machine with our advanced solution. Contact us today to explore the endless possibilities for your business!

Machine Video Link:

https://youtube.com/shorts/Gd0PdrUVNbI?si=_B8nq9nFM1u4513w

Tags: standing seam metal roof machine standing seam roofing machine standing seam roll former roof seamer machine standing seam metal machine Automatic Self Clip Lock roofing machine Joint Hidden Metal Roofing Roll Forming Machine automatic roofing forming machine
