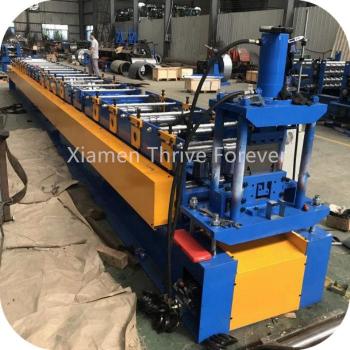

Custom Manufacture Automatic Steel Door Frame Making Machine

Custom Manufacture Automatic Steel Door Frame Making Machine

Roll Forming Machine Technical Parameter

Parameters	Specification
Voltage	380V/50HZ/3PH or customized
Driving Motor	7.5KW
Hydraulic Cutting Motor	3KW
Forming Steps	20
Working Speed	15-25m/min
Material Width	390mm
Thickness for Steel	1.5mm
Shaft Diameter	65mm
Shaft Material	High grade 45# forged steel
Roller Material	45# steel with polished and heat treatment (base on raw material type)
PLC Cabinet	Schneider, Mitsubishi or Delta
Encoder	Omron
Sprocket Wheel	45 steel high-frequencies quench
Cutting Blade Material	Cr12MoV
Machine Frame Material	Fine welded structural steel;
Roofing Material	PPGI, GI steel G245-345
Painted Color	Blue+Gray White Or Customization
Overall Size	7500*1350*1550mm
Weight	3200KGS

• 1. Sample Pictures & Profile Design

  2.


  3.


  4. Machine Description

  5. Our Durable Construction: This steel door frame roll forming line can 24 hours continously working, our door frame making machine features a robust and durable construction. From the frame to the cutting mechanism, every component is engineered for long working life reliability and performance.

     Efficient Production:  With 20 stations roll forming and hydraulic cutting technology, our automatic steel door frame making machine enables efficient production of door frame profiles with minimal downtime. It is full automatic roll forming line, the cutting length, cutting pieces, and producing speed can be set on touch screen as required.

     User-Friendly Operation: Designed for easy operation, our roll forming machine features intuitive controls and a user-friendly interface. Operators can quickly set up the machine, adjust the producing task setting on touch screen, and start to process automatically.

     Enhanced Product Quality: By utilizing high-quality materials and precision engineering, our roll forming machine produces door frame profiles of superior quality. Each profile is consistent in dimensions, all angles are vertical, all purlin frames are straight not twist.




  6.


  7. Need more information, pls contact with us now.
