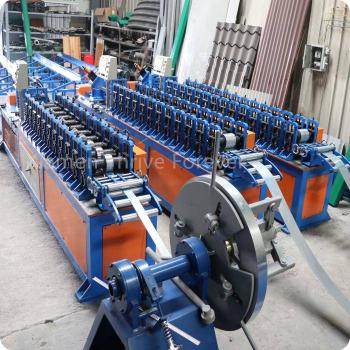

CU Metal Stud and Track Drywall Roll Forming Machine

Roll Forming Machine Technical Parameter

Parameters	Specification
Voltage	380V/50HZ/3PH or customized
Driving Motor	5.5KW
Hydraulic Cuting Motor	3KW
Forming Steps	12
Working Speed	15-25m/min
Material Width	135mm
Thickness for Steel	0.4-0.8mm
Shaft Diameter	65mm
Shaft Material	High grade 45# forged steel
Roller Material	45# steel with polished and heat treatment (base on raw material type)
PLC Cabinet	Schneider, Mitsubishi or Delta
Encoder	Omron
Sprocket Wheel	45 steel high-frequencies quench
Cutting Blade Material	Cr12MoV
Machine Frame Material	Fine welded structural steel;
Roofing Material	PPGI, GI steel G245-345
Painted Color	Blue+Gray White Or Customization
Overall Size	6500*1350*1550mm
Weight	2500KGS

• Precision Engineering for Carbon Steel

1. Processing metal studs and tracks demands precision and reliability, especially when working with carbon steel material. With a thickness range of 0.4mm to 0.8mm, the Metal CU Stud and Track Roll Forming Machine is engineered to meet the exacting standards of the industry. Every aspect of its design, from the roller configurations to the feeding end, is meticulously optimized to handle carbon steel with finesse and accuracy. The result is flawless metal studs and tracks that meet the stringent requirements of construction projects.

2.
   Space-Saving Design for Optimal Layout

3.
   Efficiency in production extends to the layout of the manufacturing facility. Recognizing the importance of space optimization, the Metal CU Stud and Track Roll Forming Machine is designed with a space-saving layout in mind. The portable PLC control box welded to the side of the machine frame eliminates the need for additional floor space, allowing for a more compact and streamlined setup. This thoughtful design not only maximizes floor space utilization but also enhances workflow efficiency, creating a conducive environment for high-volume production.

4.

• Innovation is the driving force behind progress in the construction industry, and the Metal CU Stud and Track Roll Forming Machine exemplifies this ethos. With its flying cutting design, precision engineering for carbon steel, portable PLC control box, and space-saving layout, this machine sets new benchmarks for efficiency, convenience, and productivity. By revolutionizing the manufacturing process of metal studs and tracks, it empowers construction companies to meet the demands of modern building projects with speed, precision, and reliability.
