    CNC Control 6 Meter Steel Sheet Slitter Folder Machine
    CNC Control 6 Meter Steel Sheet Slitter Folder Machine
  • CNC Control 6 Meter Steel Sheet Slitter Folder Machine
  • CNC Control 6 Meter Steel Sheet Slitter Folder Machine
  • CNC Control 6 Meter Steel Sheet Slitter Folder Machine
  • CNC Control 6 Meter Steel Sheet Slitter Folder Machine
  • CNC Control 6 Meter Steel Sheet Slitter Folder MachineCNC Control 6 Meter Steel Sheet Slitter Folder MachineCNC Control 6 Meter Steel Sheet Slitter Folder MachineCNC Control 6 Meter Steel Sheet Slitter Folder Machine

    CNC Control 6 Meter Steel Sheet Slitter Folder Machine

    Clamp and apron speed control system allows the operator to adjust the speed of this 6 Meters steel Sheet Slitter Folder Machine CNC Control. ​PLC control material bending angle, input what angle degree you need, then operate the bending action by foot switch. Input parameters on the touch screen, the user can adjust the clamp approach speed, Clamp speed, clamp raise speed, and the speed up and down of the folding apron. The idle speed of the pump is also adjustable to give quiet and efficient operation.

      Working Length: 6000mm

      Bending Range: 0~125 degree

      Material Thickness: Max. 1.2mm

      Suitable Material: PPGI, Galvanized Sheet, Aluminum Sheet, Stainless Steel

      Pressing Motor: 11KW

      Throat Depth: 1000mm(Max raw material width for clamping)

      Clamping Press: 7pcs

    6 Meter Steel Sheet Slitter Folder Machine CNC Control

    Machine Video



    General Technical Parameter

    Description Parameters
    Suitable Material PPGI, galvanized sheet, aluminum sheet, stainless steel sheet
    Material Thickness Max. 1.2mm
    Feeding Width Max. 1000mm
    Working Length 6000mm
    Driving Motor Servo motor, pump motor: 0.82KW
    Pressing Motor 11KW pump motor (installed inn machine inside)
    Bending Range 0~125 degree
    Throat Depth 1000mm
    Clamping Press 7 pcs
    Hinge
    7 groups
    Weight
    3500kg
    Dimension
    7600*1570*1770mm


    Slitting Device

    Description Parameters
    Driving Motor 1.1KW motor Driving
    Material Thickness Max. 1.2mm
    Slitting Blade ⌀80mm wheel slitting, Cr12MoV as blade material
    Guiding Device
    Steel rope circling
    Slitting Speed Approx. 0.8m/min
    Slitting Distance Through steel rope circulation


    PLC Control System

    Description Parameter
    Constrol System                     Electric Control board: Custom manufacture, inverter: SINEE,  touch screen: Weilun
    Operation Table Touch  screen input

    Angle Programmer

    Encoder test
    Slitting Control  Manual
    Emergency Stop

    Emergency stop button, emergency limited, foot switch


    There are seven clamping press units for 6 meters steel sheet slitter folder machine, servo motor feeding material, portable PLC control box control,the bending angle range is 0~125 degree. The slitting roller will slit the no used metal sheet material, and bend the required angle degree correctly.

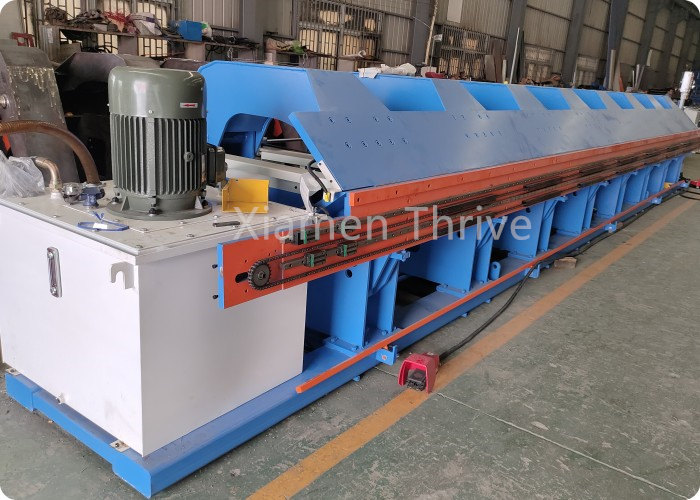

    metal sheet slitter folding machine

    Clamp and apron speed control system allows the operator to adjust the speed of this 6 Meters steel Sheet Slitter Folder Machine CNC Control. PLC control material bending angle, input what angle degree you need, then operate the bending action by foot switch. Input parameters on the touch screen, the user can adjust the clamp approach speed, Clamp speed, clamp raise speed, and the speed up and down of the folding apron. The idle speed of the pump is also adjustable to give quiet and efficient operation.

    China CNC bending machine


    CNC Control 6 Meter Steel Sheet Slitter Folder Machine
