A corrugated roof sheet machine is a roll forming industrial machine used to manufacture corrugated steel panels, which are commonly used in the construction industry for metal roofing, steel siding, and steel wall panel. The corrugated forming machine is designed to process flat steel sheets into a corrugated profile by passing them through a series of roller stations.
Technical Parameter
| Parameters | Specification |
| Voltage | 380V/50HZ/3PH |
| Driving Motor | 7.5KW |
| Hydraulic Press/Cutting Motor | 3KW |
| Forming Steps | 20 |
| Working Speed | 18-20m/min |
| Material Width | 500mm |
| Thickness for Steel | 0.3-0.6mm |
| Shaft Diameter | 65mm |
| Shaft Material | High grade 45# forged steel |
| Roller Material | 45# steel with polished and heat treatment |
| PLC Cabinet | Schneider, Mitsubishi or Delta |
| Encoder | Omron |
| Sprocket Wheel | 45 steel high-frequencies quench |
| Cutting Blade Material | Cr12MoV steel |
| Machine Frame Material | Fine welded structural steel; |
| Roofing Material | PPGI, GI steel G245-345 |
| Painted Color | Blue+Gray White Or Customization |
| Overall Size | 10500*1600*1600mm |
| Weight | 4500KGS |
Material Feeding:
The process begins with a material feeding system that ensures smooth entry of flat steel sheets into the machine. The steel sheets are usually fed from a coil.

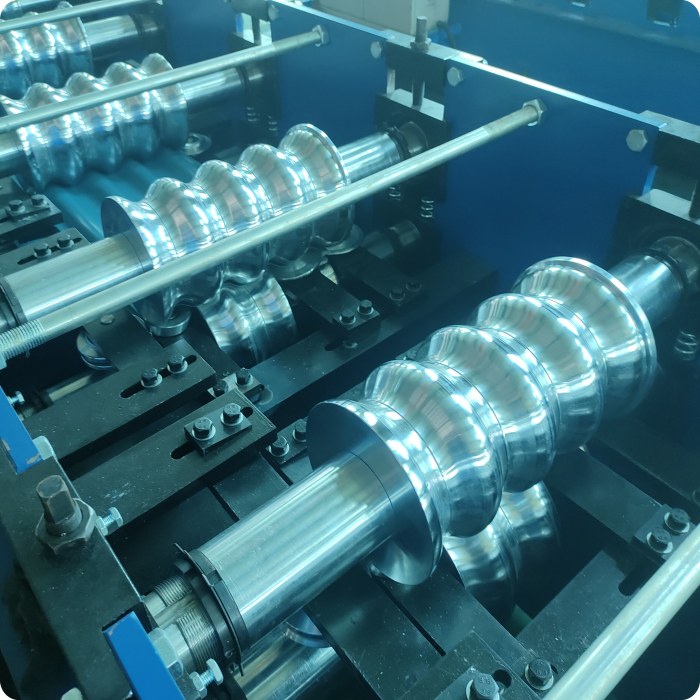

Roll Forming Stations:
The corrugated roof sheet machine consists of 20 roll forming stations, typically arranged in a linear sequence.
Each station is equipped with specially designed rollers that shape the flat steel sheet into the desired corrugated pattern and driven by one 7.5KW motor.
As the material progresses through each station, the rollers gradually form the steel sheet into its final corrugated profile.
Cutting Mechanism:
Once the sheet reaches the correct shape, a cutting mechanism will cut it into the required length.
This can be done using a flying cut device (for continuous production) or a stop to cut device (for batch production), depending on the design of the machine.
Stacking or Packaging (Option):
After the panels are cut to length, they are typically stacked or packaged for easy handling and transportation to the next stage of production or delivery.
Advanced Features:
Some of corrugated roof sheet machines come with additional features to enhance efficiency and precision:
1. Automatic lubrication systems for maintaining corrugated roof sheet machine performance, no rust, no other broken once long time no use.
2. PLC Computerized control systems for easier operation and combines all key parameters like speed, length, quantity together and auto processing.
3. Adjustable roller gaps to accommodate different thicknesses the steel panels being formed.
Our corrugated sheet used as metal wall on steel building as below.
