Corrugated Wall Panel Roll Forming Machine

Corrugated Wall Panel Roll Forming Machine

Our Corrugated Wall Panel Roll Forming Machine is designed to produce sinusoidal wave-shaped panels with superior precision and efficiency. This advanced machinery caters specifically to modern industry needs, providing a significant upgrade over traditional barrel corrugating machines.

Technical Parameter

Key Features of Our Special Model

1. Material Compatibility:

   - Processes FULL HARD Galvanized Steel with yield strengths up to 550-600 MPa.

   - Works with thin material thickness ranging from 0.12-0.4mm, ensuring lightweight yet durable panels.

2. High Efficiency and Low Labor Costs:

   - Enhanced production efficiency, capable of high-speed operations, minimizing human intervention and labor costs.

   - Designed to fully replace traditional barrel corrugating systems, making it the ideal choice for modern manufacturing.

Components and Benefits of the Production Line

1. Decoiler:

   - Hydraulic decoiler for efficient coil loading and smooth feeding, ensuring uninterrupted production.

2. Manual Guide Feeding:

   - Adjustable guide to accommodate different material widths for versatile panel sizes.

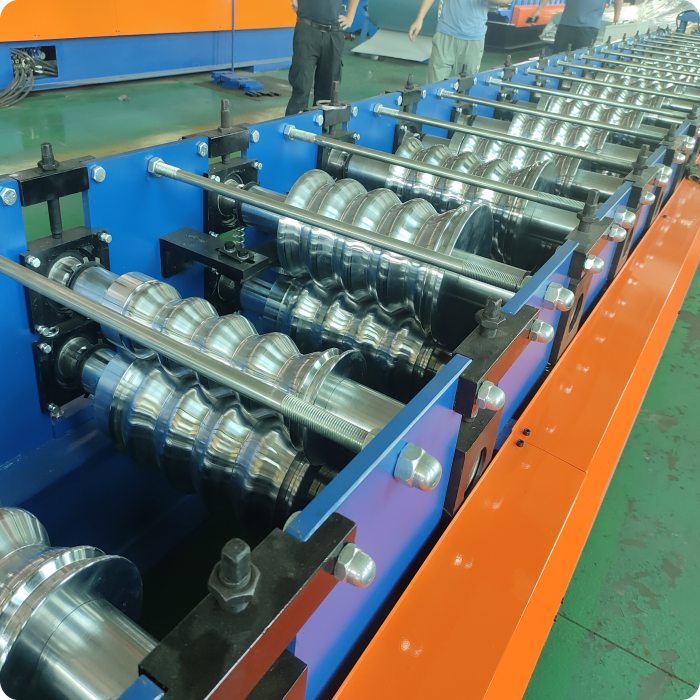

3. Roll Forming System:

   - Built with solid 75mm shafts for maximum stability.

   - Rollers are hard chrome coated, providing excellent rust resistance and durability for long-term use.

4. Hydraulic Cutting System:

   - Delivers precise cuts to the desired length.

   - Blades designed to last beyond 100 million cutting cycles, ensuring reliability and low maintenance.

5. Run Out Table:

   - Provides safe and smooth delivery of finished panels, reducing handling time.

6.  PLC Control System:

   - Fully automated operation with a user-friendly interface for easy management.

   - Reduces manual errors and increases production consistency.

 Applications

Our Corrugated Wall Panel Roll Forming Machine is ideal for producing panels used in both roofing and wall systems, especially for workshop construction and housing projects.

Comprehensive Roll Forming Solutions

Beyond corrugated wall panels, we offer a broad range of roll forming machines to suit various construction needs, including:

- Roofing Profiles: Trapezoidal, metal deck, glazed tiles, and standing seam.

- Structural Components: Purlins (C, Z), main channels, drywall profiles (studs, tracks), and top hat sections.

- Specialty Products: Ridge caps, downspouts, and K-span panels.

Tailored to Your Needs

Our team offers customized solutions based on your drawings, tolerances, and budget. Each metal roll forming machine line is tailored to meet your exact requirements, ensuring that you receive a system that delivers optimal performance and precision.

Choose Xiamen Thrive for innovative and efficient roll forming solutions. Contact us today to discuss your project and explore how our equipment can elevate your production capabilities.
