Producing Speed: 15-25m/min
Suitable Material: galvanized sheet, PPGI
Driving Motor: 7.5KW
Forming Station: 18
Control type: PLC
Roller Material: 45 forging steel
| Parameters | Specification |
| Voltage | 380V/50HZ/3PH or customized |
| Driving Motor | 7.5KW |
| Hydraulic Press/Cutting Motor | 4KW |
| Forming Steps | 18/20 |
| Working Speed | 15-25m/min |
| Material Width | 1220mm |
| Thickness for Steel | 0.3-0.8mm |
| Shaft Diameter | 75mm |
| Shaft Material | High grade 45# forged steel |
| Roller Material | 45# steel with polished and heat treatment (base on raw material type) |
| PLC Cabinet | Schneider, Mitsubishi or Delta |
| Encoder | Omron |
| Sprocket Wheel | 45 steel high-frequencies quench |
| Cutting Blade Material | Cr12 steel |
| Machine Frame Material | Fine welded structural steel; |
| Roofing Material | PPGI, GI steel G245-345, Aluminum |
| Painted Color | Blue+Gray White Or Customization |
| Overall Size | 10500*1600*1600mm |
| Weight | 8500KGS |

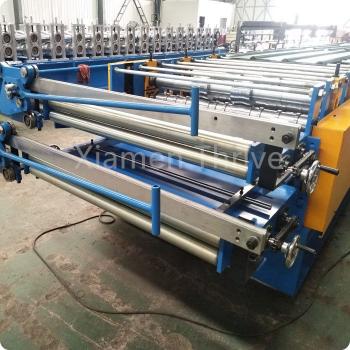

The Double Layer Roofing Sheet Roll Forming Machine is a game-changer in the production of galvanized steel roofing sheets. There is double layer design, one layer one roof design, so it is good for saving machine layout place. There is manual cutter blades for cutting material head and tails, it is more convenient for buyer use. If you have any new roof style, you can show us, we can organize all roofing sheet roll forming machine work well, turnkey work can service you well.
Company details: We Xiamen Thrive company has our own engineer teams for design, installing and adjusting roofing sheet roll forming machines well. We also can send an engineer to the buyer's factory site for installation. We know that solute all our buyer's worries is important, only win-win business is long business.
