    Quick Installation Design Galvanized Deck Roll Forming Machine
    Quick Installation Design Galvanized Deck Roll Forming Machine
  • Quick Installation Design Galvanized Deck Roll Forming Machine
  • Quick Installation Design Galvanized Deck Roll Forming Machine
  • Quick Installation Design Galvanized Deck Roll Forming Machine
  • Quick Installation Design Galvanized Deck Roll Forming Machine
  • Quick Installation Design Galvanized Deck Roll Forming MachineQuick Installation Design Galvanized Deck Roll Forming MachineQuick Installation Design Galvanized Deck Roll Forming MachineQuick Installation Design Galvanized Deck Roll Forming Machine

    Quick Installation Design Galvanized Deck Roll Forming Machine

    The galvanized deck is a steel structure building material produced by cold roll forming,which is used for supporting floor concrete in the construction industry. Galvanized deck roll forming machine is also called metal deck forming machine. Xiamen Thrive Forever is a professional manufacturer and exporter of all kinds of standard and non-standard galvanized deck roll forming machines.

        Material Thickness: 0.5-0.8mm or customized

        Forming Station: 18 steps

        Shaft Diameter: 75/95mm

        Producing Speed: 25-30m/min or custom design

        Cutting Blade Material: Cr12MoV

    Quick Installation Design Galvanized Deck Roll Forming Machine






    Technical Parameter

    Parameters Specification
    Voltage 380V/50HZ/3PH or customized
    Driving Motor 22KW
    Hydraulic Press/Cutting Motor 7.5KW
    Forming Steps 18
    Working Speed 25-30m/min
    Material Width   Max. 475mm
    Thickness for Steel 0.5-0.8mm
    Shaft Diameter 75/95mm
    Shaft Material High grade 45# forged steel
    Roller Material 45# steel with polished and heat treatment (base on raw material type)
    PLC Cabinet Schneider, Mitsubishi or Delta
    Encoder Omron
    Sprocket Wheel 45 steel high-frequencies quench
    Cutting Blade Material Cr12MoV steel
    Machine Frame Material Fine welded structural steel;
    Roofing Material PPGI, GI steel, Q235
    Painted Color Blue+Gray White Or Customization
    Overall Size 13600*1650*1600mm
    Weight 8500KGS


    Floor Deck Profile Design

    This Galvanized Deck Roll Forming Machines material  thickness is from 0.5mm to 0.8mm, and the max feeding width is 475mm, the same as purlin machine, it is size interchangeable style. The embossing design can be customized manufacture according to requirements, too.

       steel floor deck roll forming machine

    metal decking floor making machine


    Machine Description

    1. It is new design in steel floor deck industry, quick installation design, non-concrete engineering.

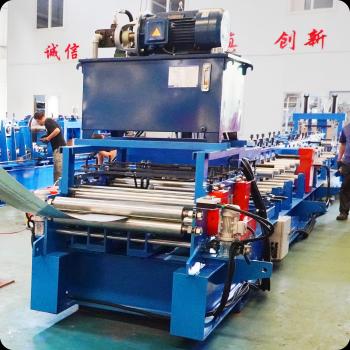

    2. In order to save metal deck forming machine layout space, we have put the hydraulic station upon machine frame as buyers need.

    3. One set galvanized deck roll forming machine can produce many sizes metal deck sheet,the universal cutting device is available for all sizes, more convenient and saving cutting blades changing time.

    4. There is Cr12 material rollers for embossing, embossing design is good for anti-slip, because safety is the first important thing.

    5. With high efficiency, the driving motor is 18.5KW, so our metal deck roll former possesses the production speed of up to 25 m/min.

    6. All the processing task can be full automatic control by PLC control system.

    Q235 metal deck roll forming machine
