Highway Guardrail Roll Forming Machine

Highway Guardrail Roll Forming Machine

Gearbox driving is the best choice for this highway guardrail forming machine line, it is good for keeping driving power is big enough, because 450MPa steel is harder and needs big power to roll forming. No matter you're a manufacturer looking to expand your production capabilities or a highway construction company in need of reliable guardrails, this highway guardrail roll forming machine is the perfect choice.

Machine Parameters

Machine Features & Applications

The highway guardrail roll forming machine is specialized equipment to produce high-quality guardrails for road safety applications. It is for processing 2.7-3mm thickness cold rolled steel with a material tension grade of 450MPa.

The entire Highway Guardrail Roll Forming Machine production line, includes the roll forming machine section, is designed to operate seamlessly together, providing a highly efficient and manufacturing process. The 5tons*600mm hydraulic un-coiler feeds the steel strip smoothly and continuously into the machine line, while the powerful feeding guide ensures that the strip is aligned and tensioned correctly for accurate forming.

The pre-levelling device prepares the steel strip for straightening steel coil flat. This ensures the final product will have a smooth and even contour, meeting the strict standards required for highway guardrails.

Equipped with a gear box driving system and 16-step forming process, this highway guardrail machine gradually and precisely bends and shapes the steel strip into the desired profile of the highway guardrail. The separate stand frame design provides stability and rigidity during the forming process, while the 30KW main motor, driven by a frequency speed control system, ensures that the rollers operate at optimal speeds for different materials and thicknesses.

The rollers of the highway guardrail forming machine are manufactured from GCR15 steel, a high-quality alloy that is known for its wear resistance and durability. Precision-machined using CNC lathes and heat-treated to further enhance their strength and performance, these rollers are capable of withstanding the high forces and torques generated during the roll forming process.

The roller shaft diameter is Φ95mm, ensuring that they are strong and reliable. The precision machining of the shafts ensures that they rotate smoothly and with minimal friction, contributing to the overall efficiency and longevity of the guardrail forming machine.

This highway guardrail roll forming machine forming speed is approximately 10-15m/min, this speed, makes this highway guardrail roll forming machine an ideal solution for manufacturers who need to produce large quantities of high-quality guardrails quickly and efficiently.

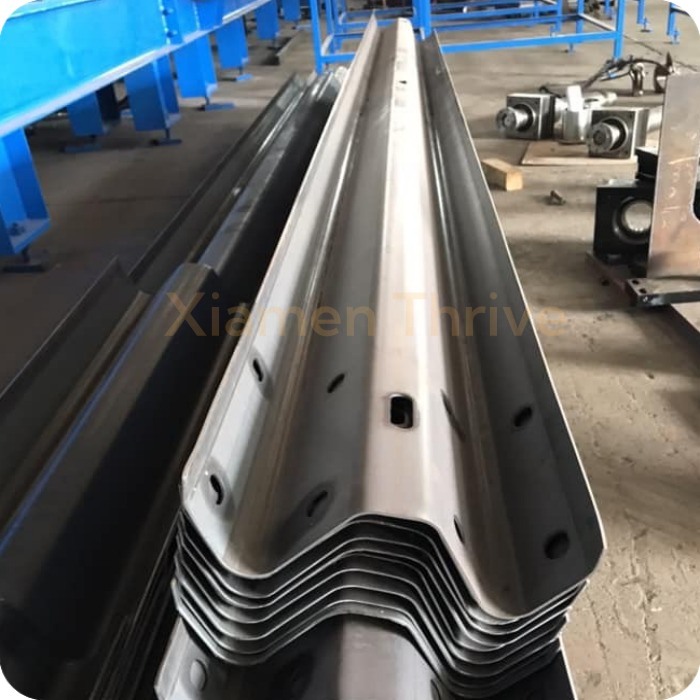

Product Application Project
