Forming station: 22 steps
Main motor: 11KW
Hydraulic Motor: 3KW
Material thickness:0.47-0.8mm
Shaft diameter: 75mm
Roller Material: Cr12
Material width: 925mm
Working speed: 15-25m/min
| Parameters | Specification |
| Voltage | 380V/50HZ/3PH |
| Driving Motor | 11KW |
| Hydraulic Press/Cutting Motor | 3KW |
| Forming Steps | 22 |
| Working Speed | 15-25m/min |
| Material Width | 925mm |
| Thickness for Steel | 0.47-0.8mm |
| Shaft Diameter | 75mm |
| Shaft Material | High grade 45# forged steel |
| Roller Material | 45# steel with polished and heat treatment |
| PLC Cabinet | Schneider, Mitsubishi or Delta |
| Encoder | Omron |
| Sprocket Wheel | 45 steel high-frequencies quench |
| Cutting Blade Material | Cr12 steel |
| Machine Frame Material | Fine welded structural steel; |
| Roofing Material | PPGI, GI steel G245-345 |
| Painted Color | Blue+Gray White Or Customization |
| Overall Size | 9500*1600*1600mm |
| Weight | 8000KGS |
This clip lock roof is popular used in BIPV system, no need screw lock, good for waterproof function. The clip lock roof produced by our clip lock roof roll forming machine has many advantages:
1. Roof is straight, no wave on two sides;
2. Good effective cutting function, not rib at cutting position;
3. Easy for BIPV system installation

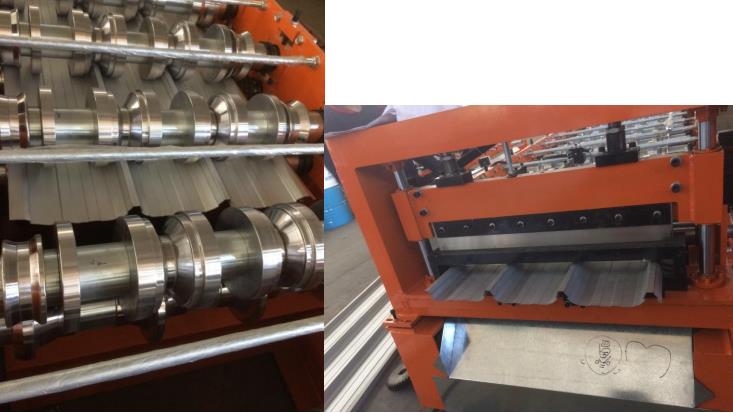

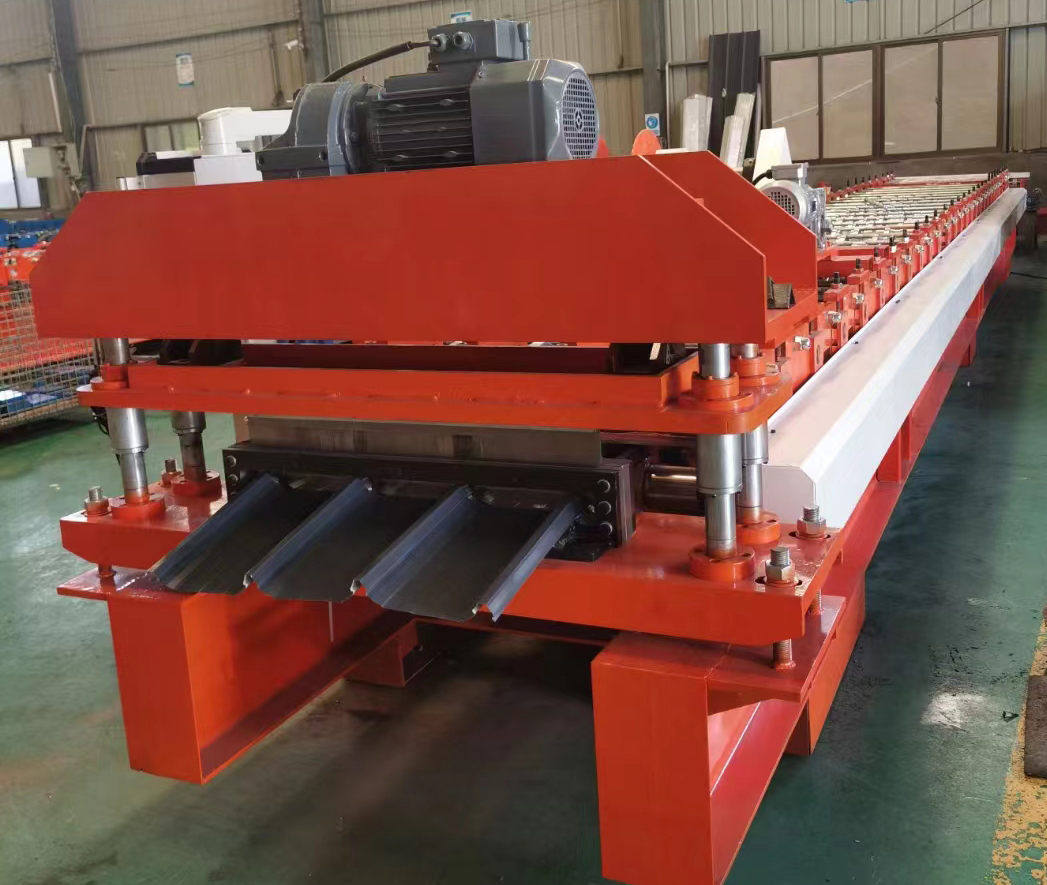

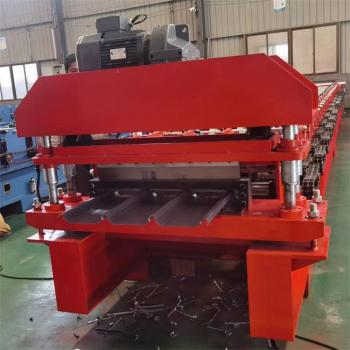

This clip lock roof roll forming machine is designed to produce high-quality metal roofing panels with a distinctive interlocking clip mechanism, It is good for weather-resistant and structurally secure roofing systems. This clip lock roof machine roll forms steel coils into precise clip lock profiles, characterized by raised ribs and concealed fastening clips, ensuring seamless panel alignment and superior resistance to wind uplift, water ingress, and thermal expansion.

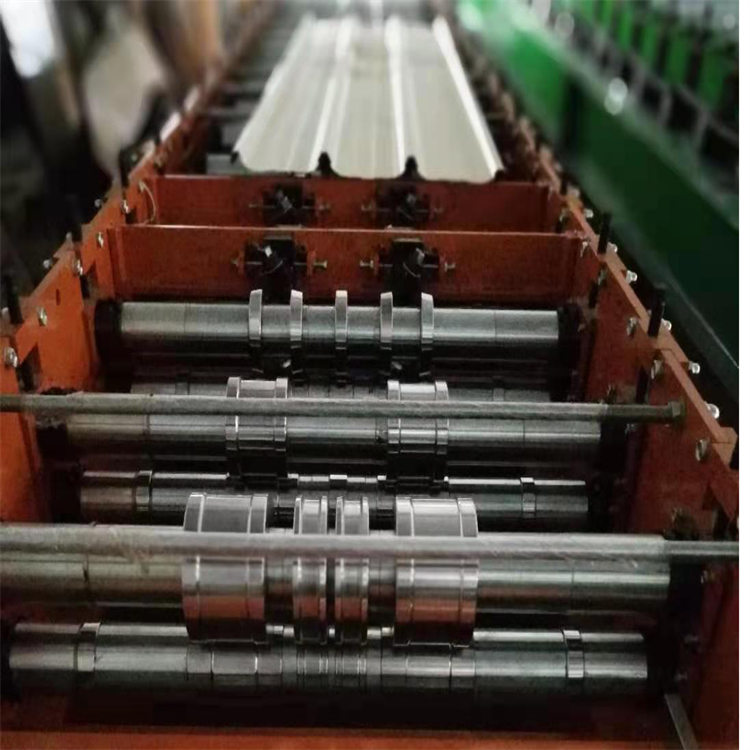

Normally, one clip lock roof roll forming machine integrates a servo-driven decoiler, multi-stage roll forming stations, and a PLC-controlled hydraulic cutting system. Its precision rollers shape the steel coil with consistent curvature and clip-lock edges, enabling quick installation and robust inter-panel connectivity. Advanced automation ensures minimal material waste, the Whole roll forming machine line's speed is adjustable, and this machine is suitable for processing various steel grades (e.g., galvanized, color-coated).
Applications & Benefits
Widely used in commercial, industrial, and residential roofing, the clip lock roof roll forming machine produces joint-hidden panels that combine aesthetics with durability. The clip-lock design eliminates exposed screws, enhancing corrosion resistance and visual appeal. Customizable parameters (e.g., panel width, rib height) will be checked well before machine to be placed into manufacturing, then Xiamen Thrive will make correct roll forming machine according to your engineer required roof sheets.
Ideal for regions prone to extreme weather, this clip lock roof machine ensures reliable, long-lasting roofing solutions with minimal maintenance.
