Feeding Width: 1200mm
Driving Motor: 11KW
Forming Steps: 22 stations
Pump Motor: 4KW
Control System: Simenz or Delta brand PLC system
| Parameters | Specification |
| Voltage | 380V/50HZ/3PH or customized |
| Driving Motor | 11KW |
| Hydraulic Press/Cutting Motor | 4KW |
| Forming Steps | 22 |
| Working Speed | 20-45m/min |
| Material Width | 1200mm |
| Thickness for Steel | 0.3-0.7mm |
| Shaft Diameter | 75mm |
| Shaft Material | High grade 45# forged steel |
| Roller Material | 45# steel with polished and heat treatment (base on raw material type) |
| PLC Cabinet | Schneider, Mitsubishi or Delta |
| Encoder | Omron |
| Sprocket Wheel | 45 steel high-frequencies quench |
| Cutting Blade Material | Cr12 |
| Machine Frame Material | Fine welded structural steel; |
| Roofing Material | PPGI, GI steel G245-345 |
| Painted Color | Blue+Orange Or Customization |
| Overall Size | 10800*1650*1600mm |
| Weight | 5000KGS |

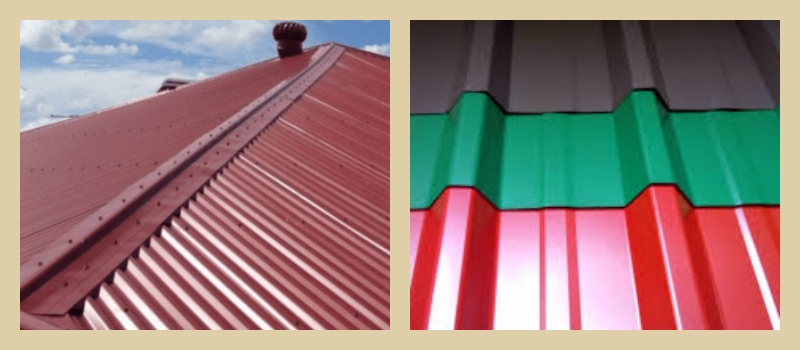

Suitable for 0.3-0.7mm PPGI, galvanized sheet, feeding width is 1200mm.
The IBR making machine operates at a working speed of 20m/min to 45m/min, producing up to 9600m or 18,900m of roofing sheets in an 8-hour shift.
Durable Quality
With rolling material leader at feeding guide device.
Solid shafts with 75mm diameter ensure durability.
Rollers are plated with 0.05mm hard chrome, making them rust-resistant and harder for extended usage.
With Portable PLC control system for controlling producing speed and designs oil tank upon machine frame for saving machine layout place.
The cutting frame and blades (made from CR12 with quench treatment) resist deformation, ensuring consistent performance.
High Precision
Precision is key to the IBR making machine's performance.
The ibr manufacturing machine base is processed on a gantry milling system for a smooth finish.
Shafts undergo grinding at least twice for flawless roller alignment.
CNC machining is employed for roller processing to maintain perfect profile accuracy.
Automatic and Easy Operation
Operated via a Mitsubishi or Siemens control system, the IBR making machine offers a user-friendly and safe interface. Whether for beginners or skilled operators, it ensures a seamless production process with minimal downtime.
Excellent Service
Xiamen Thrive supports South African customers by offering technical assistance, machine installation, and worker training. Skilled technicians and engineers can visit your factory to ensure smooth setup and operation.
