Feeding Width: 914mm
Driving Motor: 11KW
Xiamen Thrive's IBR roof sheet making machine is customized design machine processing speed as buyer's need, the other machine such as curving machines for IBR sheets, corrugated sheet forming machines, and ridge cap forming machines can be provided, too.
| Parameters | Specification |
| Voltage | 380V/50HZ/3PH or customized |
| Driving Motor | 11KW |
| Hydraulic Press/Cutting Motor | 4KW |
| Forming Steps | 20 |
| Working Speed | 18-22m/min |
| Material Width | 914mm |
| Thickness for Steel | 0.3-0.6mm |
| Shaft Diameter | 75mm |
| Shaft Material | High grade 45# forged steel |
| Roller Material | 45# steel with polished and heat treatment (base on raw material type) |
| PLC Cabinet | Schneider, Mitsubishi or Delta |
| Encoder | Omron |
| Sprocket Wheel | 45 steel high-frequencies quench |
| Cutting Blade Material | Cr12 |
| Machine Frame Material | Fine welded structural steel; |
| Roofing Material | PPGI, GI steel G245-345 |
| Painted Color | Blue+Orange Or Customization |
| Overall Size | 11200*1550*1600mm |
| Weight | 5500KGS |

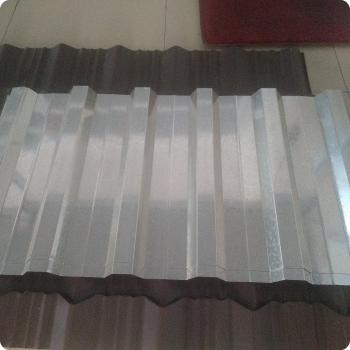

Suitable for 0.3-0.6mm PPGI, galvanized sheet, feeding width is 914mm.

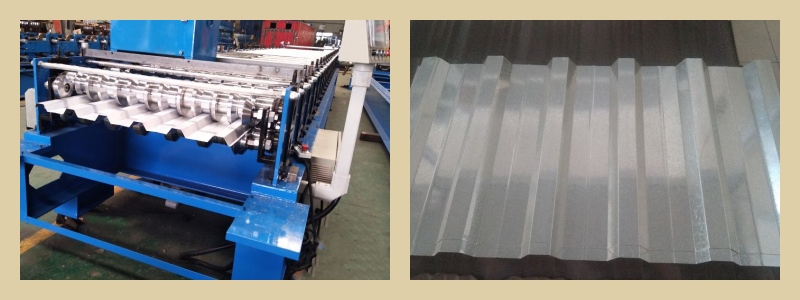

The IBR roof making machine is designed with durability, precision, and efficiency in mind, ensuring top-notch performance for every production run.
Feeding Guide Device with Material Leader
A rolling material leader is integrated into the feeding guide device to ensure seamless material entry into the forming section.
Good Quality Solid Shafts
The ibr sheeting machine owns solid shafts with a 75mm diameter, so it is the superior durability and stability during operation.
Chrome-Plated Rollers
Rollers are coated with 0.05mm of hard chrome, providing excellent rust resistance and enhanced hardness for long-lasting use.
Portable PLC Control System
Equipped with a portable PLC control system, the IBR roof making machine allows operators to easily manage production speed and design adjustments. Additionally, an oil tank is conveniently designed on the machine frame, optimizing the layout and saving space.
High-Quality Cutting System
The cutting frame and blades are constructed from CR12 steel and undergo quench treatment, ensuring exceptional resistance to deformation and consistent cutting performance.
Investing in Xiamen Thrive's IBR roof sheet making machine ensures high-quality roofing sheet production that meets the demands of the South African market. Its blend of efficiency, precision, and support makes it the preferred choice for roofing businesses.
