    Steel Rolling Shutter Door Frame Roll Forming Machine
    Steel Rolling Shutter Door Frame Roll Forming Machine
  • Steel Rolling Shutter Door Frame Roll Forming Machine
  • Steel Rolling Shutter Door Frame Roll Forming Machine
  • Steel Rolling Shutter Door Frame Roll Forming Machine
  • Steel Rolling Shutter Door Frame Roll Forming Machine
    • Steel Rolling Shutter Door Frame Roll Forming MachineSteel Rolling Shutter Door Frame Roll Forming MachineSteel Rolling Shutter Door Frame Roll Forming MachineSteel Rolling Shutter Door Frame Roll Forming Machine

    Steel Rolling Shutter Door Frame Roll Forming Machine

    This is a high quality Door Frame Roll Forming Machine, all the hydraulic parts and electric parts are famous brand. One door frame roll forming machine can produce total four sizes, all the sizes are changed by D-spacer manually, so this rolling door frame making machine manufacture cost is better, and machine performance is more durable. Before roll forming, there are five rolls straightening device, it is to ensure U channel all angles are vertical.

      Forming Station: 14

      Driving Motor: 11KW

      Material Thickness: 1.5-2mm

      Hydraulic Motor: 5.5KW

      Type Change Model: D-spacer type change


    INQUIRY NOW
    PRODUCT CATEGORY
    New Products
    DESCRIPTION

    Steel Rolling Shutter Door Frame Roll Forming Machine

    Custom design and manufacture kinds of roll forming machines for door frame, solar bracket, standing seam roof, box beam for storage shelves, metal roof panels and so on. Welcome to contact and set up your good factories in your local, we can combine all your roll forming lines on one computer system for governing your factory order more clearly.

    Technical Parameter

    Parameters Specification
    Voltage 380V/50HZ/3PH or customized
    Driving Motor 11KW
    Hydraulic Press/Cutting Motor 5.5KW
    Forming Steps 14 stations
    Working Speed 18-25m/min (without punching and cutting action speed)
    Bottom Size 65mm
    Waist Height 75, 100, 150, 180, 210mm
    Lip Width 0mm
    Thickness for Steel 1.5-2mm
    Shaft Diameter 75mm
    Shaft Material High grade 45# forged steel
    Roller Material 45# steel with polished and heat treatment
    PLC Cabinet Schneider, Mitsubishi or Delta
    Encoder Omron
    Sprocket Wheel 45 steel high-frequencies quench
    Cutting Blade Material Cr12 steel
    Machine Frame Material Fine welded structural steel;
    Roofing Material PPGI, GI steel G245-345
    Painted Color Blue+Gray White Or Customization
    Overall Size 9800*1600*1600mm
    Weight 6000KGS


    Machine Video


    Door Frame Machine Advantage

    High-Quality Hydraulic & Electric Parts
    All hydraulic and electric parts are sourced from renowned brands, guaranteeing reliability and longevity.

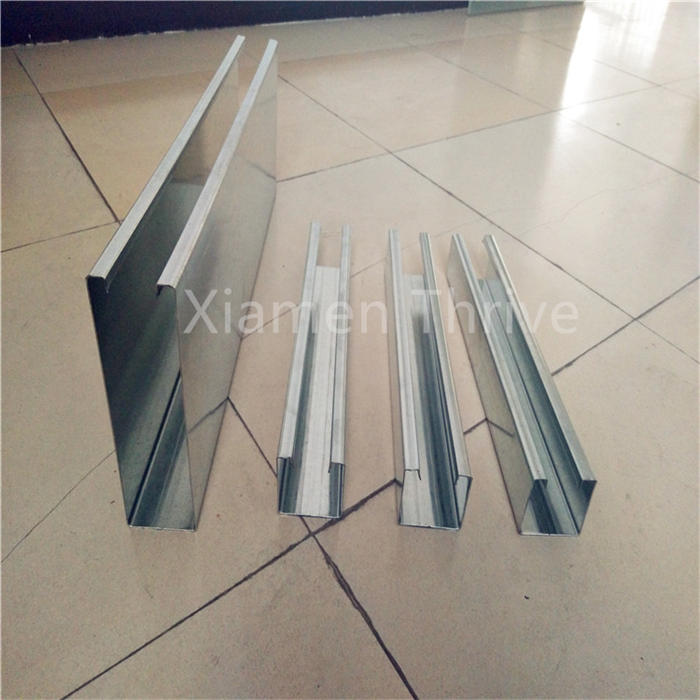

    One Machine Produce 4 Size U Channel
    Our metal door frame roll forming machine is suitable for producing a total of four different U channel sizes, making it a cost-effective solution for varied production requirements.
    Manual Size Adjustment, More Durable
    All size changes are operated by a D-spacer, allowing for quick and easy manual adjustments. This feature not only reduces manufacturing costs but also enhances the metal door frame roll forming machine's overall performance and durability.
    5 Rolls Pre-straightening Device
    We have equipped with a five-roll straightening device before the roll forming process, this ensures all U channel angles are perfectly vertical. So it is crucial for achieving high-quality, consistent outputs.
    Applications: Ideal for manufacturing U channels for steel rolling shutter doors, this door frame machine is perfect for garage door industries,


    Why Choose Us?
     Reliability: With components from famous brands, our machine offers unmatched reliability.
    Efficiency: The manual D-spacer adjustment system simplifies size changes, boosting productivity.
    Quality: The five-roll straightening device ensures precision in every U channel produced.

     steel door frame roll forming machine made in China
