High Qulity Metal Floor Deck Forming Machine

High Qulity Metal Floor Deck Forming Machine

This metal floor deck forming machine is 26 stands roll forming for 0.7-1.2mm galvanized steel sheet, whole roll forming lines shafts are solid, and the diameter is 75mm, driving station shaft diameter is 95mm. Xiamen Thrive is focus on providing good quality and durable metal floor deck forming machine to buyers.

Suitable Width: 915mm

Material Thickness: 0.7-1.2mm or customized

Forming Station: 26 steps

Shaft Diameter: 75/95mm

Producing Speed: 15-25m/min or custom design

Cutting Blade Material: Cr12MoV

INQUIRY NOW

PRODUCT CATEGORY

New Products

DESCRIPTION

High Qulity Metal Floor Deck Forming Machine

Technical Parameter

Parameters	Specification
Voltage	380V/50HZ/3PH or customized
Driving Motor	22KW
Hydraulic Press/Cutting Motor	7.5KW
Forming Steps	26
Working Speed	15-25m/min
Material Width	915mm
Thickness for Steel	0.7-1.2mm
Shaft Diameter	75/95mm
Shaft Material	High grade 45# forged steel
Roller Material	45# steel with polished and heat treatment (base on raw material type)
PLC Cabinet	Schneider, Mitsubishi or Delta
Encoder	Omron
Sprocket Wheel	45 steel high-frequencies quench
Cutting Blade Material	Cr12MoV steel
Machine Frame Material	Fine welded structural steel;
Roofing Material	PPGI, GI steel G245-345
Painted Color	Blue+Gray White Or Customization
Overall Size	1360016501600mm
Weight	8500KGS

Floor Deck Profile Design

We can custom design embossing style on the steel floor decking sample surface, this metal floor deck forming machine's material feeding width can be 914mm, 1000mm, 1220mm and 1250mm, the overlap design can be customized manufacture according to requirements, too.

Machine Description

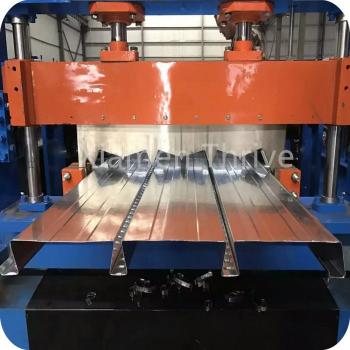

The closed necking floor deck forming machine is a good solution for manufacturing high-quality steel decks. 26 stations of roll forming, this machine ensures steel deck's precise and efficient production with intricate closed necking designs. We have chosen Cr12MoV steel for the cutting blade guarantees strong precise cuts, minimizing waste and maximizing material utilization.

Driven by a robust 22KW drive motor and a 7.5KW cutting motor, this floor deck forming machine gives out impressive performance and speed, capable of producing decks at a rate of 15-25m/min or customized speeds to meet specific production needs. The slug cutting-off feature further enhances its versatility, making it an ideal choice for a wide range of applications.

Xiamen Thrive, as a metal deck machine manufacturer, this steel deck roll forming machine is designed to meet the highest standards of quality and precision. Its advanced roll-forming technology and durable construction make it a reliable and efficient solution for manufacturers of steel floor decks.

Applications

This metal deck forming machine's applications are vast and include use in the construction of high-rise buildings, bridges, and industrial facilities. The decks produced by this machine are known for their strength, durability, and fire resistance, making them a preferred choice for use in demanding environments.
In summary, the closed necking floor deck forming machine, matches a Cr12MoV cutting blade, 26 stations of roll forming, and powerful motors, is the best solution for manufacturers of steel floor decks. Whole forming machine's precision, efficiency, and versatility make it an invaluable asset for construction companies, steel fabricators, and building materials suppliers alike.
