Speed: 4-7m/min
Forming Station: 18 steps
Main Motor: 11KW
Hydraulic Motor: 11KW
Driven with Hardened Gear or Chain: The Metal Roof Tile Making Machine features a durable machine driving system with hardened gears or chains for smooth and reliable movement during high-speed production.
Magnetic Linear Encoder: The Metal Roof Tile Making Machine uses a magnetic linear encoder for direct measuring, ensuring precise control of tile length and width, which enhances the overall accuracy of the production process.
Precision Length and Width Control: Automatic adjustments for length and width allow for consistently accurate tile dimensions, ensuring uniformity and reducing material waste.
Motor Brake for Secure Positioning: A motor brake system provides accurate and secure positioning during the forming process, contributing to high-quality tile production.
The Non-stop Flying-Cut Metal Roof Tile Making Machine is the good choice for manufacturers who want to improve their project build speed. With its high speed features, precise control, this machine can service for your factory long terms.
Technical Parameter
Parameters | Specification |
Voltage | 380V/50HZ/3PH |
Driving Motor | 11KW |
Hydraulic Press/Cutting Motor | 11KW |
Forming Steps | 18 |
Working Speed | 4-7m/min |
Material Width | 1219mm |
Thickness for Steel | 0.3-0.7mm |
Shaft Diameter | 75mm |
Shaft Material | High grade 45# forged steel |
Roller Material | 45# steel with polished and heat treatment |
PLC Cabinet | Schneider, Mitsubishi or Delta |
Encoder | Omron |
Sprocket Wheel | 45 steel high-frequencies quench |
Cutting Blade Material | Cr12 steel |
Machine Frame Material | Fine welded structural steel; |
Roofing Material | PPGI, GI steel G245-345 |
Painted Color | Blue+Gray White Or Customization |
Overall Size | 9500*1600*1600mm |
Weight | 8000KGS |

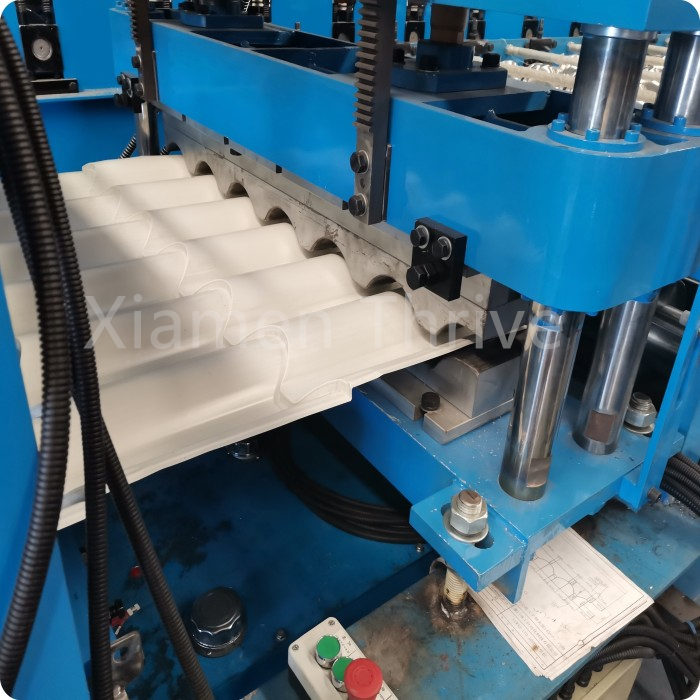

The Metal Roof Tile Making Machine has a fast, precise cutting system that includes:
Flying Pressing: A 7KW Siemens/Delta servo motor moves the step pressing device, allowing for smooth, high-speed pressing without interrupting the forming process.
Flying Cutting: A 5KW Siemens/Delta servo motor moves the step cutting device, ensuring fast and accurate cuts for high-quality roof tiles.
Hydraulic Pressing/Cutting Group: The Metal Roof Tile Making Machine is equipped with an 11KW hydraulic motor with professional cooling, it is good for keeping whole roll forming machine work normally under hot environment.
