0.13mm-0.3mm Thickness Metal Sheet Corrugated Roof Panel Roll Forming Machine

Popular Design Corrugated Sheet Roll Forming Machine For Steel Construction Building

How to manufacture a high-quality, high-precision corrugated roof panel forming machine? The following aspects should be focused on:

1. Precise mechanical design

The rigidity and stability of the mechanical structure need to be fully considered during the designing,  should ensure the high-precision molding effects can be maintained under long-term, high-intensity working conditions.

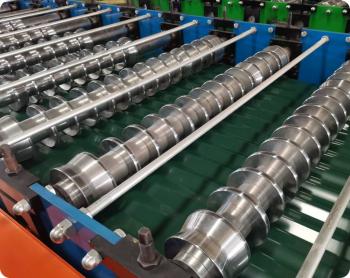

The design of the roller needs to be meticulous, taking into account material selection, heat treatment process and surface treatment technology, such as fine turning polishing and hard chrome plating, to improve the wear resistance and service life of the roller.

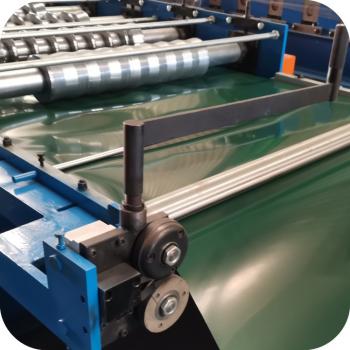

The design of the front leveling device and manual pull shears also needs to consider the convenience and safety of operation.

2. Advanced control system

Using PLC (programmable logic controller) as the core control system, it can achieve precise control of the entire production process.
The PLC system needs to have strong data processing capabilities and stability, it is to ensure that every step in the production process can be accurately executed.
Equipped with a touch screen or human-machine interface, it is convenient for operators to monitor production status and adjust production parameters in real time.

3. High-precision sensor and feedback system

Encoders and sensors are installed at key locations to monitor various parameters in the production process in real time.
Through the feedback system, the sensor data is transmitted to the PLC in real time. The PLC performs calculations and judgments based on these data, and then adjusts the action of the actuator to ensure high production accuracy.

4. Strict production and quality control

During the production and installation process, the process flow and quality standards are strictly followed to ensure that every component meets the design requirements.
Comprehensive inspection and testing of finished products, including mechanical properties, electrical properties, control accuracy and other aspects, to ensure that the molding machine meets high quality and high precision requirements.

Roll Forming Machine Technical Parameter

This corrugated sheet roll forming machine is designed to meet the high performance requirements. It adopts the PLC control system, transmission with gear/sprocket, and has a high precision cutting length. This Roof Panel Forming Machine is ideal for producing roof panels with high accuracy, high efficiency and stable performance. With a wide range of applications, it is an ideal choice for roof panel forming operation. Its advanced technology ensures a reliable, efficient and safe operation in various environments.
