A slitter folder bending machine is an industrial powerhouse designed to streamline the fabrication of thin sheet metal by combining two critical processes: slitting (precision cutting) and bending (angular forming). These slitter folder machines are indispensable in industries such as construction, automotive, and appliance manufacturing, where accuracy and efficiency in shaping materials like SUS steel, PPGI (pre-painted galvanized iron), and galvanized sheets are paramount.



Functionality and Design

Slitter folders are engineered to handle materials ranging from 0.2mm to 3mm in thickness, depending on the model. For instance, standard machines typically process 1.2mm-2mm sheets, while robust variants like the Jorns slitter folder extend capabilities up to 3mm, accommodating tougher materials like stainless steel and aluminum. The machine’s length can be customized to 4m, 6m, 8m, or 12m, catering to both compact workshops and large-scale production lines.



---

Operational Workflow

Preparation: Before operation, precise measurements of the sheet metal are input into a computerized control panel, which governs the machine’s actions. Advanced models allow operators to manually input parameters, select pre-programmed templates, or even sketch custom profiles for complex bends.



1. Bending Process:

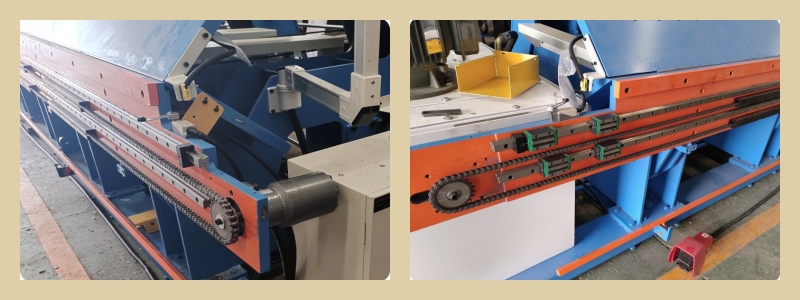

The sheet is fed onto a conveyor belt and aligned using a back gauge, a clamping system with arched arms and a horizontal beam to secure the metal.



A rotating bar beneath the machine (or dual bars in the Jorns double bending model) pushes upward, folding the sheet to the desired angle (e.g., 60° or 90°). The back gauge’s firm grip ensures a permanent bend without slippage.



Dual bending bars enhance angular flexibility, enabling faster, multi-directional folds for intricate designs.

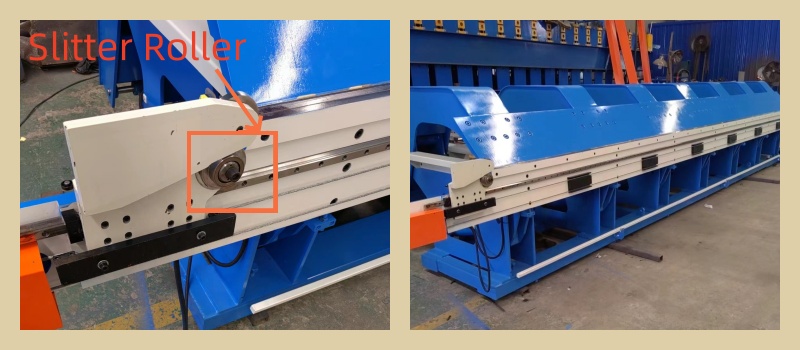

2. Slitting Process:



For straight cuts, a guillotine blade slices horizontally across the sheet once positioned via the control panel. Complex cuts require supplementary tools like bandsaws.



The back gauge clamps the sheet during slitting, ensuring clean, accurate splits from edge to edge.

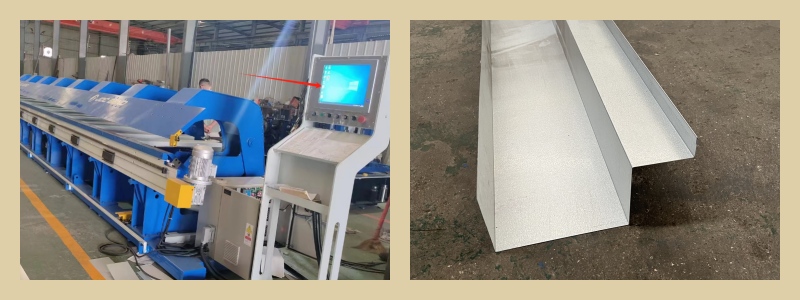

3. Control Panel and Precision

Modern slitter folders prioritize user-friendly interfaces. Operators input material type, thickness, bend angles, and cut dimensions into the digital control screen, which translates data into machine actions. High-end systems permit real-time adjustments, such as editing bend angles to a single degree or simulating folds digitally to minimize trial runs.



Safety Mechanisms

Safety is integral to design. Slitter folding machines feature foot pedals to activate operations, ensuring the operator remains at a safe distance during blade or clamp movements. Additional    safeguards include emergency stop buttons, safety interlocks, and pressure-sensitive guards. Training is mandatory, as improper use of heavy-duty clamps, guillotines, or rotating bars poses  significant risks.

---



Applications and Material Versatility

Materials: From corrosion-resistant SUS steel to lightweight aluminum, slitter folders adapt to varied metal properties. Thinner sheets (0.2mm–1mm) are ideal for electronic enclosures, while thicker sheets (2mm–3mm) suit structural components.



Industries: Used in roofing, HVAC ducting, automotive frames, and appliance casings, these machines deliver consistent results for high-volume or bespoke orders.



Xiamen Thrive: Your Partner in Metal Fabrication

Xiamen Thrive supplies premium sheet metal solutions, renowned for our durability and precision. Whether you require new or refurbished machinery, Xiamen Thrive offers:



Customizable Machines: Tailored lengths, bending capacities, and control systems.



Support Services: Maintenance, repairs, and operator training to maximize uptime.



Comprehensive Inventory: From notching machines to automated bending cells, Xiamen Thrive covers every fabrication need.



---

Conclusion

Slitter folder bending machines revolutionize sheet metal processing by merging cutting and bending into one efficient workflow. With advancements in digital controls and safety, they empower industries to achieve complex designs with unmatched accuracy. For businesses seeking reliability, Xiamen Thrive stands as a trusted provider, ensuring your operations stay competitive with cutting-edge technology and expert support.
