| Parameters | Specification |
| Voltage | 380V/50HZ/3PH or customized |
| Driving Motor | 11KW |
| Hydraulic Press/Cuting Motor | 4KW |
| Forming Steps | 20 |
| Working Speed | 15-25m/min |
| Material Width | 1220mm |
| Thickness for Steel | 0.3-0.8mm |
| Shaft Diameter | 75mm |
| Shaft Material | High grade 45# forged steel |
| Roller Material | 45# steel with polished and heat treatment (base on raw material type) |
| PLC Cabinet | Schneider, Mitsubishi or Delta |
| Encoder | Omron |
| Sprocket Wheel | 45 steel high-frequencies quench |
| Cutting Blade Material | Cr12 steel |
| Machine Frame Material | Fine welded structural steel; |
| Roofing Material | PPGI, GI steel G245-345, Aluminum |
| Painted Color | Blue+Gray White Or Customization |
| Overall Size | 10500*1600*1600mm |
| Weight | 4700KGS |
Raw Material Basic Information

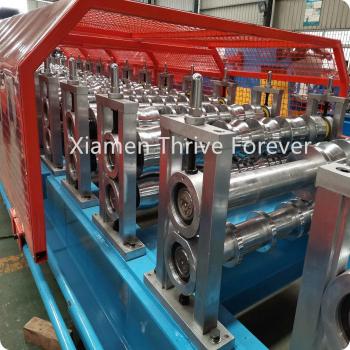

All the roll forming rollers are machined by CNC lathe, then fine polished, so full set metal sheet roof roll forming machine rollers are shinning and looks at mirror. On each station, we have installed dials for reading, when we change to produce another different thickness of raw material, we can adjust these dials into corresponding reading, it is convenent and easy working after intalling these dials on each stations' two sides.
We have made entry bench and manual pre-shear at roll forming machine feeding end, this is good for anti steel material fall down or feeding too fast into roll forming section.
There are 20 stations roll forming, and the frame wall is standing pillar type, this is high quality style design, it is popular in the market at this moment. We understand the importance of delivering high-quality roofing products to your customers. That's why our machine is engineered with precision and built to last. Experience consistent, reliable performance with every roll.
