Purlin Machine For Sale

Purlin Machine For Sale

For all of your purlin engineer for steel frame need, Xiamen Thrive's C75-300 C purlin roll forming machine is your best choice. With the 17 steps roll forming stations, this machine is designed for best stability and output, it is the cost-effectiveness of our series roll forming machines, so you can easily finish your engineer producing tasks.

Its unique design also makes it very easy to use, which lets you boost productivity and cut down on downtime, quick to change size and easy to change cutting blade's width.

The C75-300 C purlin machine is suitable for different steel structure applications because it can be easily adjusted to produce various specifications, with a width range of 75-300mm and a thickness range of 1.0-3.0mm.

Purchase Xiamen Thrive's C75-300 C purlin machine right now to advance your manufacturing skills. High precision purlin machine will improve your competitiveness in the industry.

The following are the benefits of AUTOMATIC size-change C purlin roll forming machine:

1. Produce various C purlin sizes (C75-300) without changing spacers or rollers
2. Size change can be finished automatically
3. Changing the cutter for a new size is not need
4. Low maintenance costs and easy for operation
5. Any size within the machine's range is infinitely adjustable, which helps save material.
6. Optional hole punching on purlin web side and flange side in any position.

Principal Parts

De-coiler with hydraulic system

Type of De-coiler: automated expanding and loosening

Steel coil inner diameter: 480-530mm

Hydraulic Motor: 3KW

Weight Capacity: 5T

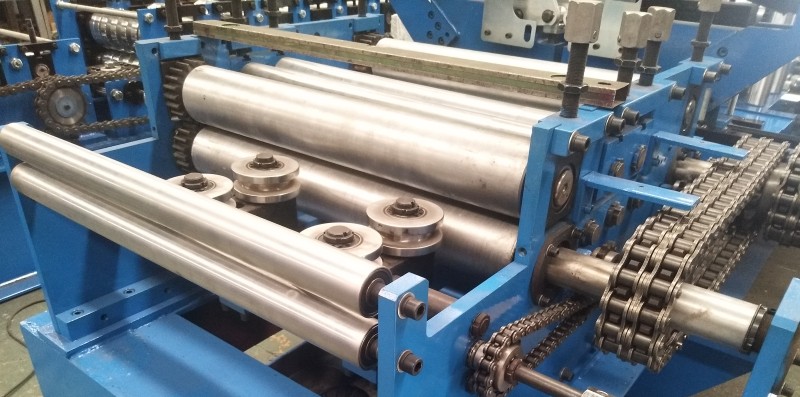

Leveling and Feeding Device

Before the material is fed into the roll forming machine, it is used to flatten it

3 upper rolls+ 4 lower rolls straightening

The main roll former

Type of drive: chain

Forming speed: 25-30 m/min

Roller:17 groups forming rollers

Cr12 mold steel is used for forming roller.

For guarantee the finished metal purlin, all roller shafts are tooled two times by a grinding machine.

Main shaft diameter: ø75/90 mm (final design)

Shaft's raw material: 40Cr

Type Change:PLC touch screen automatic or semi-automated size changes

Hydraulic Cutting and Punching

Punching Type: Hydraulic Punching (pre-punch or post-punch)

Cutting Type: hydraulic universal cutting

Cutting blade material: Cr12MoV

7.5KW hydraulic motor power

16MPa pressure for hydraulic cutting

Two cutting molds are available; one shears webs of 80–220 mm using a specialized shearing tool, while the other shears webs measuring 150–300 mm.

One set of product support frames

PLC Control System

Automatically set the quantity, punching length, and cutting length on control system

When the forming machine is punching and cutting, it will be stopped.

Quantity counting and automatic length measurements (precision +/- 2mm)

Matches with PLC, Inverter Touch Screen, Encoder etc.

Why Choose Us?

• 10 years of CZ purlin roll previous manufacturing experience
• Good quality and competitive pricing
• Free 1-year warranty
• Quick after-sale service response
• In 2 minutes, the auto web size changes from 75 to 300 mm.
• Adaptable to client's need, customize purlin machines are acceptable
• Simple to operation and maintain
• self-developed post cutter with a single blade that can cut all end product sizes.
