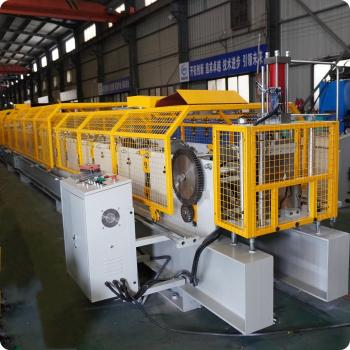

Steel Metal Rain Gutter Roll Forming Machine

Metal Sheet Greenhouse Gutter Roll Forming Machine

Our rain gutter roll forming machine chooses 65mm solid shaft, and the H beam steel is used as the base frame, so that the gutter machine can work 24 hours non-stop whole day, so our machine is a little higher price but long time working life in the experience.

All the rollers for this rain gutter roll forming machine are manufactured by CNC machines, fine lath then polished, good precision rollers produce high accuracy rain gutter.

The hydraulic cut-off device is stress-relieved, combined with hydraulic valves and oil pipes, it is good working under high temperature environment. If buyer needs, we can add a cooling fan for the hydraulic system, too.

Manual pre-shear and safety cover can be options for our rain gutter roll forming machine line if buyers need.

We use Mitsubishi or Siemens PLC system with stable performance and simple operation. After operator inputs length and quantity on screen, the producing task will be done automatically by the gutter forming machine, and the cutting length tolerance is within ± 1mm

Thrive brand rain gutter making machine’s forming speed can reach about 20 m/min.

Machine Parameters

Application for Greenhouse Gutter Roll Forming Machine

1. Metal Fascia covers are protecting timber against splitting, flaking and peeling.

2. Metal rain gutter minus serious water damage risk.

3. Steel down pipe leads water from rain gutter groundwater drain facility.

Xiamen Thrive can provide full set solution for metal roof system. Such as rood panel roll forming machine, fascia cover machine, rain gutter machine and down pipe machines, it is the turn-key service for you.
