Roller Shutter Door Forming Machine

Roller Shutter Door Forming Machine

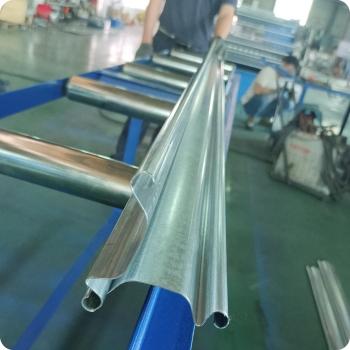

The most important for roller shutter door system no fall down after roller shutter door strips jointed one by one, it is safety consideration. So the edge of each shutter door strip joint position should be correct, if the joint size is less, the roller shutter door has fall down danger; if joint size is too much, there may be stroke happen, it is not good for inserting one piece shutter door strip into another piece. We will adjust roller shutter door forming machines well for anti this problem happens before container loading in our factory.



Roll Forming Machine Technical Parameter

Parameters	Specification
Voltage	380V/50HZ/3PH or customized
Driving Motor	4KW
Hydraulic Cutting Motor	2.2KW
Forming Steps	14
Working Speed	15-25m/min
Material Width	135mm
Thickness for Steel	0.8-1.5mm
Shaft Diameter	65mm
Shaft Material	High grade 45# forged steel
Roller Material	45# steel with polished and heat treatment (base on raw material type)
PLC Cabinet	Schneider, Mitsubishi or Delta
Encoder	Omron
Sprocket Wheel	45 steel high-frequencies quench
Cutting Blade Material	Cr12MoV
Machine Frame Material	Fine welded structural steel;
Roofing Material	PPGI, GI steel G245-345
Painted Color	Blue+Gray White Or Customization
Overall Size	6800*1350*1550mm
Weight	3000KGS

1. Machine Feature

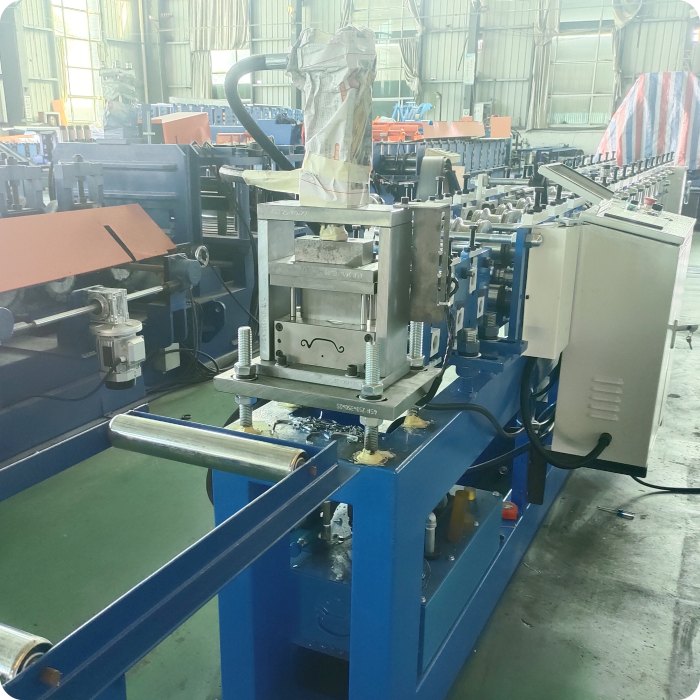

2. The roller shutter door forming machine line consists of an uncoiler, feeding part, main roll forming system, hydraulic cutting system, and product receiving table.

3.

   Machine Key Specifications:

   Forming Mold: Made from GCr15 molding steel, the molds undergo vacuum quenching heat treatment to HRC60-62°, the roller surface is machined with a CNC lathe for high accuracy.

   Shaft Material: Constructed with 40Cr steel, processed with CNC lathes, heat-treated, and coated with a 0.04mm hard chrome layer. The surface is mirror-treated for durability and rust prevention.

   Driving Mechanism: The main motor is combined with a chain sprocket drive, featuring approximately 14 forming steps.

   Main Motor: 5.5KW with frequency speed control.

   Control System: PLC-controlled for precise cutting length, piece count, and adjustable machine line speed.

   The roller shutter door forming machine is widely used for producing rolling shutter doors for industrial plants, warehouses, supermarkets, and shopping malls. Its durability and advanced technology make it a reliable choice for large-scale production.



   With its advanced features and efficient design, this roller shutter door forming machine can well work more than 10 years, it is durable and long life producing line.




   Project Application




4.


5.


6.

•


We can make all referring machines for above product: roller shutter door forming machine, door guide rail forming machine, rolling shutter door bottom forming machine and octagonal roller tube forming machines, welcome to inquiry us soon.
