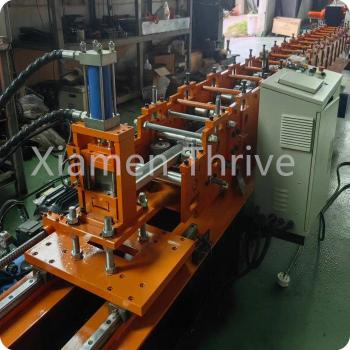

    Storage Shelf Box Beam Roll Forming Machine With Flying Cut
    Storage Shelf Box Beam Roll Forming Machine With Flying Cut
  • Storage Shelf Box Beam Roll Forming Machine With Flying Cut
  • Storage Shelf Box Beam Roll Forming Machine With Flying Cut
  • Storage Shelf Box Beam Roll Forming Machine With Flying Cut
  • Storage Shelf Box Beam Roll Forming Machine With Flying Cut
  • Storage Shelf Box Beam Roll Forming Machine With Flying CutStorage Shelf Box Beam Roll Forming Machine With Flying CutStorage Shelf Box Beam Roll Forming Machine With Flying CutStorage Shelf Box Beam Roll Forming Machine With Flying Cut

    Storage Shelf Box Beam Roll Forming Machine With Flying Cut

    This Storage Shelf Box Beam Roll Forming Machine With Flying Cut is high speed type, the cutting action will be finished during roll forming, this can improve line producing speed. The shelf box beam need two steps roll forming, roll forming machine produce C shape purlin at first, then choose a small clip lock machine to clip two C purlins together as box beam.

      Forming Station: 16 stations

      Driving Motor: 15KW

      Shaft Diameter: 75mm

      Roller Material: GCr15

      Forming Speed: 15-25m/min

      Hydraulic Motor: 5.5KW

    With Flying Cut Storage Shelf Box Beam Roll Forming Machine

    Roll Forming Machine Technical Parameter

    Parameters Specification
    Voltage 380V/50HZ/3PH or customized
    Driving Motor 15KW
    Hydraulic Cutting Motor 5.5KW
    Forming Steps 16
    Working Speed 15-25m/min
    Material Width Adjustable
    Thickness for Steel 1.5-2.0mm
    Shaft Diameter 75mm
    Shaft Material High grade 45# forged steel
    Roller Material 45# steel with polished and heat treatment (base on raw material type)
    PLC Cabinet Schneider, Mitsubishi or Delta
    Encoder Omron
    Sprocket Wheel 45 steel high-frequencies quench
    Cutting Blade Material Cr12MoV
    Machine Frame Material Fine welded structural steel;
    Roofing Material PPGI, GI steel G245-345
    Painted Color Blue+Gray White Or Customization
    Overall Size 8800*1350*1550mm
    Weight 4200KGS

      1. Sample Pictures

      2. storage shelf roll forming machine

      3. China box beam roll forming machine manufacturer

      4. Machine Description


        • Integrated Cutting Mechanism: Unlike conventional roll forming machines where cutting is  stop to cut, this machine incorporates cutting action seamlessly into the roll forming process. This innovation significantly reduces production time and eliminates the need for additional equipment.

          High-Speed Operation: Engineered as a high-speed type box beam roll forming machine, the flying cut ensures rapid production without compromising on accuracy or quality.

          Two-Step Roll Forming: The versatility of this machine allows for the production of shelf box beams in two precise steps. Initially, the roll
          forming machine shapes C-shaped purlins with exacting precision. Secondly, a small clip lock machine seamlessly joins two C purlins together, transforming them into sturdy and reliable box beams.

          Customization Options: The machine can be customized to accommodate various dimensions and specifications according to specific production requirements. Whether producing standard sizes or customized designs, this machine offers unmatched flexibility and adaptability.
