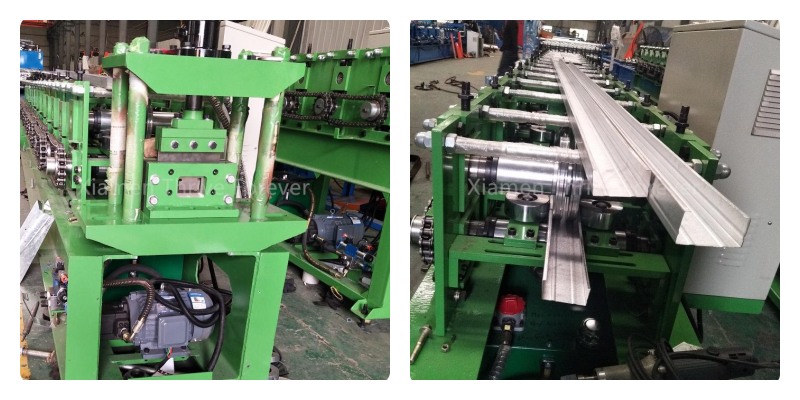

Small C Channel Stud Track Framing Forming Machine

Small C Channel Stud Track Framing Forming Machine

Roll Forming Machine Technical Parameter

Parameters	Specification
Voltage	380V/50HZ/3PH or customized
Driving Motor	5.5KW
Hydraulic Cuting Motor	3KW
Forming Steps	14
Working Speed	15-25m/min
Material Width	136mm
Thickness for Steel	0.4-0.8mm
Shaft Diameter	65mm
Shaft Material	High grade 45# forged steel
Roller Material	45# steel with polished and heat treatment (base on raw material type)
PLC Cabinet	Schneider, Mitsubishi or Delta
Encoder	Omron
Sprocket Wheel	45 steel high-frequencies quench
Cutting Blade Material	Cr12MoV
Machine Frame Material	Fine welded structural steel;
Roofing Material	PPGI, GI steel G245-345
Painted Color	Blue+Gray White Or Customization
Overall Size	6500*1350*1550mm
Weight	2620KGS

• From ceilings to partition walls, the Small C Channel Stud Track Framing Forming Machine is your good choice for modern construction projects. With its Multi-scenario application, precision engineering, and efficient production capabilities, This roll forming machine is poised to revolutionize builder's working method, developing a new era of productivity and excellence in the construction industry.

• Multi-scenario application

• Suitable for different types of materials to meet kinds of solutions. The Small C Channel Stud Track Framing Forming Machine is engineered to suit with kinds of materials, accommodating 0.4-0.8mm galvanized steel sheets, PPGI materials, and even aluminum sheets. This multi-scenario application ensures that builders can meet project requirements easily.
•



• Precision Engineering

• At the core of this stud track framing machine lies a commitment to precision engineering. Every component, from the feeding mechanism to the forming rollers, is meticulously crafted to Strictly designed and produced. This dedication to precision guarantees consistent, high-quality output, minimizing waste and maximizing efficiency.
