Steel Roof Roll Forming Machinery Double Layer

Steel Roof Roll Forming Machinery Double Layer

The Double Layer Steel Roof Roll Forming Machine is a good solution designed for manufacturing galvanized steel roofing sheets with a thickness range of 0.3-0.8mm. Whole roll forming machine line is double layer for different profile roof designs, good for saving machine layout space.

INQUIRY NOW

PRODUCT CATEGORY

New Products

DESCRIPTION

Steel Roof Roll Forming Machinery Double Layer

Technical Parameter

Parameters	Specification
Voltage	380V/50HZ/3PH or customized
Driving Motor	7.5KW
Hydraulic Press/Cuting Motor	4KW
Forming Steps	18/20
Working Speed	15-25m/min
Material Width	1220mm
Thickness for Steel	0.3-0.8mm
Shaft Diameter	75mm
Shaft Material	High grade 45# forged steel
Roller Material	45# steel with polished and heat treatment (base on raw material type)
PLC Cabinet	Schneider, Mitsubishi or Delta
Encoder	Omron
Sprocket Wheel	45 steel high-frequencies quench
Cutting Blade Material	Cr12 steel
Machine Frame Material	Fine welded structural steel;
Roofing Material	PPGI, GI steel G245-345, Aluminum
Painted Color	Blue+Gray White Or Customization
Overall Size	1050016001600mm
Weight	8500KGS

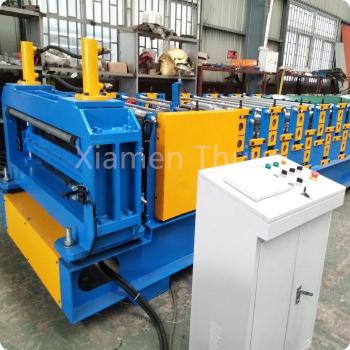

Machine & Sample Picture

The Double Layer Steel Roof Roll Forming Machine is equipped with a PLC (Programmable Logic Controller) system, providing superior control over the production process such as roof sheet length, task quantity and producing speed.

Machine Main Features

Adjustable Speed

The PLC system facilitates real-time adjustments to the double layer roof roll forming machine line production speed, ensuring optimal performance and meeting varying production demands.

plc control roll forming machines

Flexible Production Settings

Operators can input specific production tasks directly into the system, including the desired length and number of roofing sheets, as well as batch sizes. This feature ensures that double layer roof forming machine production can be tailored to meet specific project requirements.
