Technical Parameter
| Parameters | Specification |
| Voltage | 380V/50HZ/3PH |
| Driving Motor | 11KW |
| Hydraulic Press/Cutting Motor | 5.5KW |
| Forming Steps | 18 |
| Working Speed | 4-7m/min |
| Material Width | 1219mm |
| Thickness for Steel | 0.3-0.7mm |
| Shaft Diameter | 75mm |
| Shaft Material | High grade 45# forged steel |
| Roller Material | 45# steel with polished and heat treatment |
| PLC Cabinet | Schneider, Mitsubishi or Delta |
| Encoder | Omron |
| Sprocket Wheel | 45 steel high-frequencies quench |
| Cutting Blade Material | Cr12 steel |
| Machine Frame Material | Fine welded structural steel; |
| Roofing Material | PPGI, GI steel G245-345 |
| Painted Color | Blue+Gray White Or Customization |
| Overall Size | 9500*1600*1600mm |
| Weight | 8000KGS |
Profile Design Drawing

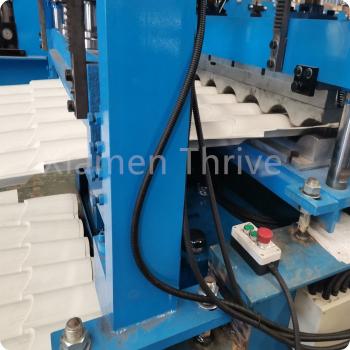

This Step Tile Roll Forming Machine's feeding width is 1220mm and the suitable material thickness is 0.3-0.8mm, good for producing galvanized sheet, color steel sheet.
This popular Step Tile Roll Forming Machine has been in high demand for the past three years. With its PLC control system, the entire roll forming line operates smoothly and automatically, completing step pressing and hydraulic cutting actions effortlessly. To ensure durability, we have crafted the step pressing mold and cutting molds using Cr12 material, known for its high hardness and excellent resistance to damage. Upgrade your roofing production with our reliable and long-lasting machine today!
This whole Step Tile Roll Forming Machine line includes: hydraulic decoiler, material feeding section, roll forming machine, hydraulic pressing & cutting device, product rack, PLC control system with touch screen.
