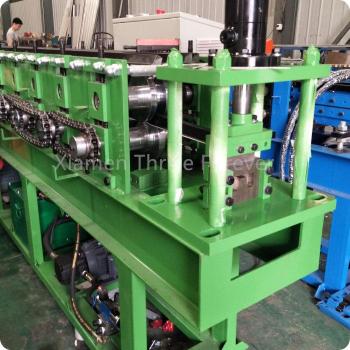

Hot Popular Top Hat Profile Ceiling Batten Roll Forming Machine

Roll Forming Machine Technical Parameter

Parameters	Specification
Voltage	380V/50HZ/3PH or customized
Driving Motor	5.5KW
Hydraulic Cuting Motor	3KW
Forming Steps	15
Working Speed	15-25m/min
Material Width	136mm
Thickness for Steel	0.4-0.8mm
Shaft Diameter	65mm
Shaft Material	High grade 45# forged steel
Roller Material	45# steel with polished and heat treatment (base on raw material type)
PLC Cabinet	Schneider, Mitsubishi or Delta
Encoder	Omron
Sprocket Wheel	45 steel high-frequencies quench
Cutting Blade Material	Cr12MoV
Machine Frame Material	Fine welded structural steel;
Roofing Material	PPGI, GI steel G245-345
Painted Color	Blue+Gray White Or Customization
Overall Size	6500*1350*1550mm
Weight	2620KGS

• High Efficient Producing

• Time is money in the construction industry, and the Ceiling Batten Furring Channel Roll Forming Machine understands this implicitly. With its seamless operation and rapid forming capabilities, this machine delivers impressive productivity levels, empowering builders to meet tight deadlines without sacrificing quality.



• User-Friendly Design

• The Ceiling Batten Furring Channel Roll Forming Machine is engineered with user-friendliness in mind. Intuitive controls and ergonomic features ensure that operators can maximize efficiency with minimal training, reducing downtime and optimizing workflow.



• Reliability Guaranteed

• In the fast-paced world of construction, reliability is non-negotiable. The Ceiling Batten Furring Channel Roll Forming Machine is built to withstand the rigors of daily operation, with robust construction and durable components ensuring long-term performance and minimal maintenance requirements.
•
